USAutomatic Ranger HD I AC Charged Single Swing Gate Opener Kit | USA-020516

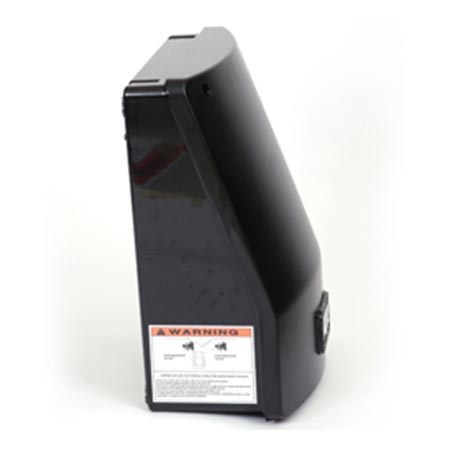

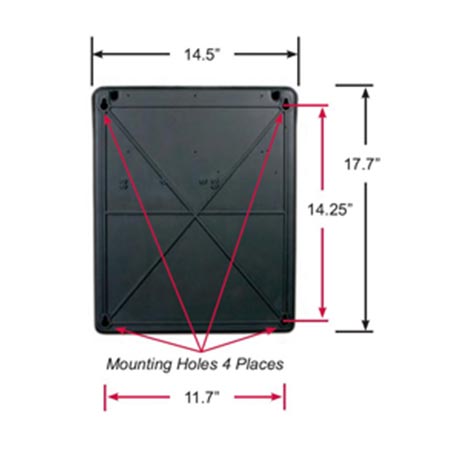

USAutomatic Ranger HD I AC Charged Single Swing Gate Opener Kit 020516 with Standard Plastic Enclosure For Gates Up To 16 Feet and 800 lbs.
Note: Battery Required for Operation (Battery not included)

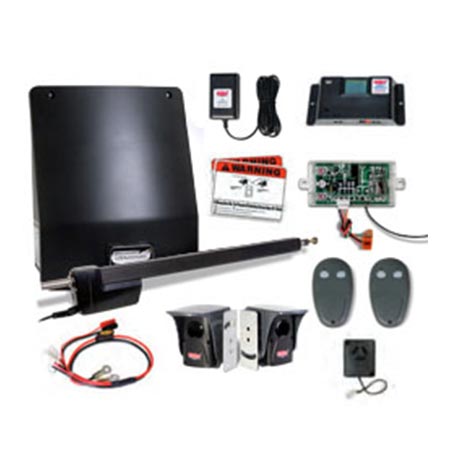

Includes
- 1 Ranger HD Actuator 510006
- 1 Control Board 500021
- 1 Battery Controller 520001
- 1 Radio Receiver w/Harness 030200
- 1 Secondary Entrapment Siren 530015
- 1 Set of Photo Eyes 550011
- 2 Wireless Two Button Remotes 030210>
- 1 DC Adapter (20vdc and 1.2 Amps) 520009
- 1 Wiring Harness 630041
- 2 Safety Signs 601020
Features
- Proudly Made in the USA!
- 3-Year Manufacture Warranty

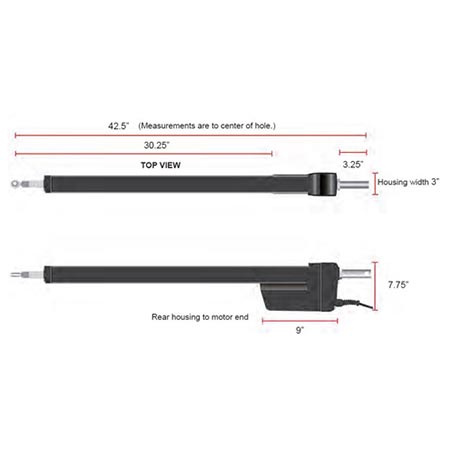

- Heavy Duty – 12 Vdc - 24in Stroke Linear Actuator
- Gate travel speed ~12 seconds
- Can be operated remotely with the NEW USAutomatic NexxGate App.
- Non-corrosive actuator and control box
- Photo Eye - through beam for reliability
- Electronic Limit Control on board
- PWM Soft Start and Soft Stop
- Battery powered charged with AC or Solar
- Optional galvanized box available
- For Residential, Light Commercial, Farm, and Ranch Use
SEE ALL USAUTOMATIC GATE KITS
Technical Specifications
-
Power Input: AC Charged
-
Maximum Gate Length: 16 Feet
-
Maximum Gate Weight: 800 Pounds
Recommended Battery Type
Battery 12-volt, Group U-1; sealed (maintenance free); 30 amp hour minimum. Using a smaller amp-hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.
CAUTION!!! Do not install a wet cell battery into the control box; this type of battery usually has removable caps used for service and will vent into the control box.
